OkHttp拦截器Interceptor
OkHttp拦截器Interceptor
接着OkHttp网络请求流程一文，我们知道OkHttp网络请求最后是通过RealCall的getResponseWithInterceptorChain()方法完成。该方法完整实现如下：
internal fun getResponseWithInterceptorChain(): Response {
//建立一个完整的拦截器责任链。
val interceptors = mutableListOf<Interceptor>()
interceptors += client.interceptors
interceptors += RetryAndFollowUpInterceptor(client)
interceptors += BridgeInterceptor(client.cookieJar)
interceptors += CacheInterceptor(client.cache)
interceptors += ConnectInterceptor
if (!forWebSocket) {
interceptors += client.networkInterceptors
}
interceptors += CallServerInterceptor(forWebSocket)
val chain = RealInterceptorChain(
call = this,
interceptors = interceptors,
index = 0,
exchange = null,
request = originalRequest,
connectTimeoutMillis = client.connectTimeoutMillis,
readTimeoutMillis = client.readTimeoutMillis,
writeTimeoutMillis = client.writeTimeoutMillis)
try {
val response = chain.proceed(originalRequest)
...
return response
} catch (e: IOException) {
} finally {
}
}
1、拦截链
OkHttp的核心就是拦截器，通过一组拦截器“递归”的完成网络请求中各个环节的处理。
1.1、Interceptors责任链
在getResponseWithInterceptorChain()方法中我们看到了一段代码：
val interceptors = mutableListOf<Interceptor>()
interceptors += client.interceptors
interceptors += RetryAndFollowUpInterceptor(client)
interceptors += BridgeInterceptor(client.cookieJar)
interceptors += CacheInterceptor(client.cache)
interceptors += ConnectInterceptor
if (!forWebSocket) {
interceptors += client.networkInterceptors
}

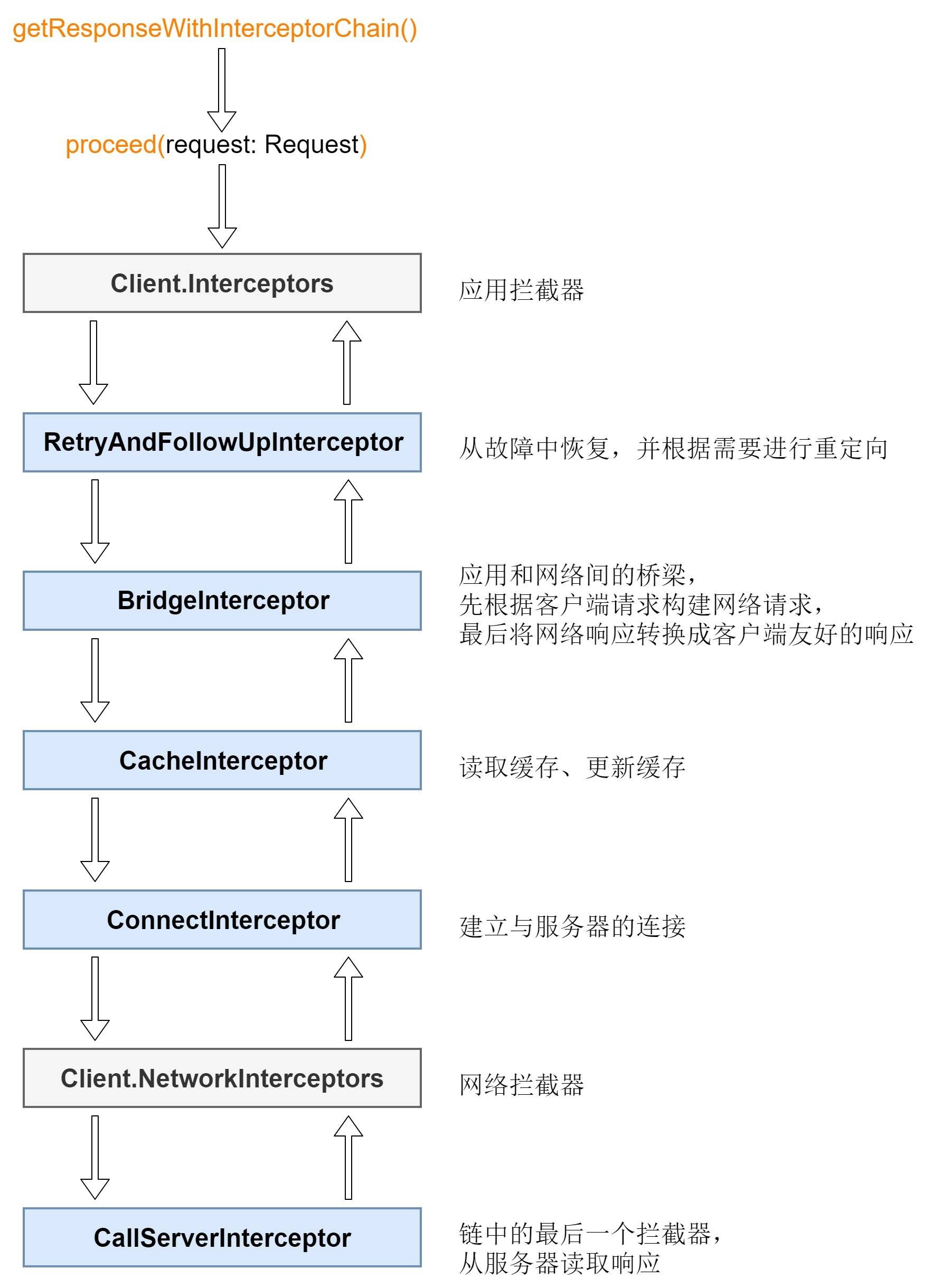

interceptors += CallServerInterceptor(forWebSocket) 上面这段代码按顺序添加拦截器：
Client.Interceptors：自定义的应用拦截器。
RetryAndFollowUpInterceptor：从故障中恢复，并根据需要进行重定向。
BridgeInterceptor：应用和网络间的桥梁，根据客户端请求构建网络；将网络请求转换成客户端友好的响应。
CacheInterceptor：读取缓存以及更新缓存。
ConnectInterceptor：与服务器建立连接。
Client.NewworkInterceptors：自定义网络拦截器。
CallServerInterceptor：服务器读取响应数据。
1.2、RealInterceptorChain
构造好拦截链之后，再通过RealInterceptorChain按顺序遍历执行interceptors集合中的拦截器：
RealInterceptorChain将整个拦截器的调用过程连接起来，看看其中proceed(request:Rquest)方法的实现：
@Throws(IOException::class)
override fun proceed(request: Request): Response {
check(index < interceptors.size)
calls++
if (exchange != null) {
check(exchange.finder.sameHostAndPort(request.url)) {
"network interceptor ${interceptors[index - 1]} must retain the same host and port"
}
check(calls == 1) {
"network interceptor ${interceptors[index - 1]} must call proceed() exactly once"
}
}
// 调用链中的下一个拦截器。copy()方法赋值构造下一个RealInterceptorChain实例
val next = copy(index = index + 1, request = request)
val interceptor = interceptors[index]
val response = interceptor.intercept(next) ?: throw NullPointerException(
"interceptor $interceptor returned null")
if (exchange != null) {
check(index + 1 >= interceptors.size || next.calls == 1) {
"network interceptor $interceptor must call proceed() exactly once"
}
}
check(response.body != null) { "interceptor $interceptor returned a response with no body" }
return response
}
2、拦截器：Interceptor
让我们挨个看看这些拦截器实现哪些作用，先看OkHttp库中预设的这五个固定调用的拦截器：RetryAndFollowUpInterceptor、BridgeInterceptor、CacheInterceptor、ConnectInterceptor、CallServerInterceptor。
2.1、RetryAndFollowUpInterceptor
RetryAndFollowUpInterceptor拦截器从故障中恢复，并根据需要进行重定向。 如果调用被取消，则可能抛出IOException。
override fun intercept(chain: Interceptor.Chain): Response {
val realChain = chain as RealInterceptorChain
var request = chain.request
val call = realChain.call
var followUpCount = 0
var priorResponse: Response? = null
var newExchangeFinder = true
var recoveredFailures = listOf<IOException>()
while (true) {
call.enterNetworkInterceptorExchange(request, newExchangeFinder)
var response: Response
var closeActiveExchange = true
try {
if (call.isCanceled()) {
throw IOException("Canceled")
}
try {
response = realChain.proceed(request)
newExchangeFinder = true
} catch (e: RouteException) {
// 通过路由连接的尝试失败。请求将不会被发送。
if (!recover(e.lastConnectException, call, request, requestSendStarted = false)) {
throw e.firstConnectException.withSuppressed(recoveredFailures)
} else {
recoveredFailures += e.firstConnectException
}
newExchangeFinder = false
continue
} catch (e: IOException) {
// 试图与服务器通信失败。请求可能已经发送。
if (!recover(e, call, request, requestSendStarted = e !is ConnectionShutdownException)) {
throw e.withSuppressed(recoveredFailures)
} else {
recoveredFailures += e
}
newExchangeFinder = false
continue
}
// 在本次response中设置上一次的response，其body为空
if (priorResponse != null) {
response = response.newBuilder()
.priorResponse(priorResponse.newBuilder()
.body(null)
.build())
.build()
}
val exchange = call.interceptorScopedExchange
val followUp = followUpRequest(response, exchange)
if (followUp == null) {
if (exchange != null && exchange.isDuplex) {
call.timeoutEarlyExit()
}
closeActiveExchange = false
return response
}
val followUpBody = followUp.body
if (followUpBody != null && followUpBody.isOneShot()) {
closeActiveExchange = false
return response
}
response.body?.closeQuietly()
//重定向不超过20次
if (++followUpCount > MAX_FOLLOW_UPS) {
throw ProtocolException("Too many follow-up requests: $followUpCount")
}
//修改下次重定向的请求request
request = followUp
priorResponse = response
} finally {
call.exitNetworkInterceptorExchange(closeActiveExchange)
}
}
}重定向次数不超过20次，否则抛出异常。这个数值定义是根据各个主流浏览器重定向次数取的：
companion object {
/**
* How many redirects and auth challenges should we attempt? Chrome follows 21 redirects; Firefox,
* curl, and wget follow 20; Safari follows 16; and HTTP/1.0 recommends 5.
*/
private const val MAX_FOLLOW_UPS = 20
}2.2、BridgeInterceptor
BridgeInterceptor是从应用程序代码到网络代码的桥梁。把客户端构建的请求转换为向服务器请求的Request；在服务器返回响应后，再将服务器返回的响应转换为客户端能够使用的Response。
override fun intercept(chain: Interceptor.Chain): Response {
val userRequest = chain.request()
val requestBuilder = userRequest.newBuilder()
val body = userRequest.body
//将一些userRequest中的属性设置进builder中
if (body != null) {
val contentType = body.contentType()
if (contentType != null) {
requestBuilder.header("Content-Type", contentType.toString())
}
val contentLength = body.contentLength()
if (contentLength != -1L) {
requestBuilder.header("Content-Length", contentLength.toString())
requestBuilder.removeHeader("Transfer-Encoding")
} else {
requestBuilder.header("Transfer-Encoding", "chunked")
requestBuilder.removeHeader("Content-Length")
}
}
if (userRequest.header("Host") == null) {
requestBuilder.header("Host", userRequest.url.toHostHeader())
}
if (userRequest.header("Connection") == null) {
requestBuilder.header("Connection", "Keep-Alive")
}
// 若未设置Accept-Encoding，自动设置gzip
var transparentGzip = false
if (userRequest.header("Accept-Encoding") == null && userRequest.header("Range") == null) {
transparentGzip = true
requestBuilder.header("Accept-Encoding", "gzip")
}
val cookies = cookieJar.loadForRequest(userRequest.url)
if (cookies.isNotEmpty()) {
requestBuilder.header("Cookie", cookieHeader(cookies))
}
if (userRequest.header("User-Agent") == null) {
requestBuilder.header("User-Agent", userAgent)
}
val networkResponse = chain.proceed(requestBuilder.build())
cookieJar.receiveHeaders(userRequest.url, networkResponse.headers)
val responseBuilder = networkResponse.newBuilder()
.request(userRequest)
// 若之前设置了gzip压缩且response中也包含了gzip压缩，则进行gzip解压
if (transparentGzip &&
"gzip".equals(networkResponse.header("Content-Encoding"), ignoreCase = true) &&
networkResponse.promisesBody()) {
val responseBody = networkResponse.body
if (responseBody != null) {
val gzipSource = GzipSource(responseBody.source())
val strippedHeaders = networkResponse.headers.newBuilder()
.removeAll("Content-Encoding")
.removeAll("Content-Length")
.build()
responseBuilder.headers(strippedHeaders)
val contentType = networkResponse.header("Content-Type")
responseBuilder.body(RealResponseBody(contentType, -1L, gzipSource.buffer()))
}
}
return responseBuilder.build()
}2.3、CacheInterceptor
CacheInterceptor负责读取缓存，并将响应写入缓存。
override fun intercept(chain: Interceptor.Chain): Response {
val call = chain.call()
val cacheCandidate = cache?.get(chain.request())
val now = System.currentTimeMillis()
val strategy = CacheStrategy.Factory(now, chain.request(), cacheCandidate).compute()
val networkRequest = strategy.networkRequest
val cacheResponse = strategy.cacheResponse
cache?.trackResponse(strategy)
val listener = (call as? RealCall)?.eventListener ?: EventListener.NONE
if (cacheCandidate != null && cacheResponse == null) {
// The cache candidate wasn't applicable. Close it.
cacheCandidate.body?.closeQuietly()
}
// 根据缓存策略若不能使用网络且没有缓存，则请求失败，构建一个请求失败的Response并返回
if (networkRequest == null && cacheResponse == null) {
return Response.Builder()
.request(chain.request())
.protocol(Protocol.HTTP_1_1)
.code(HTTP_GATEWAY_TIMEOUT)
.message("Unsatisfiable Request (only-if-cached)")
.body(EMPTY_RESPONSE)
.sentRequestAtMillis(-1L)
.receivedResponseAtMillis(System.currentTimeMillis())
.build().also {
listener.satisfactionFailure(call, it)
}
}
// 如果不需要网络请求，则直接返回
if (networkRequest == null) {
return cacheResponse!!.newBuilder()
.cacheResponse(stripBody(cacheResponse))
.build().also {
listener.cacheHit(call, it)
}
}
if (cacheResponse != null) {
listener.cacheConditionalHit(call, cacheResponse)
} else if (cache != null) {
listener.cacheMiss(call)
}
var networkResponse: Response? = null
try {
networkResponse = chain.proceed(networkRequest)
} finally {
// If we're crashing on I/O or otherwise, don't leak the cache body.
if (networkResponse == null && cacheCandidate != null) {
cacheCandidate.body?.closeQuietly()
}
}
// 如果缓存中有缓存，并且请求的code为304，则结合缓存及网络请求结果后返回，并且更新缓存中的内容
if (cacheResponse != null) {
if (networkResponse?.code == HTTP_NOT_MODIFIED) {
val response = cacheResponse.newBuilder()
.headers(combine(cacheResponse.headers, networkResponse.headers))
.sentRequestAtMillis(networkResponse.sentRequestAtMillis)
.receivedResponseAtMillis(networkResponse.receivedResponseAtMillis)
.cacheResponse(stripBody(cacheResponse))
.networkResponse(stripBody(networkResponse))
.build()
networkResponse.body!!.close()
// Update the cache after combining headers but before stripping the
// Content-Encoding header (as performed by initContentStream()).
cache!!.trackConditionalCacheHit()
cache.update(cacheResponse, response)
return response.also {
listener.cacheHit(call, it)
}
} else {
cacheResponse.body?.closeQuietly()
}
}
val response = networkResponse!!.newBuilder()
.cacheResponse(stripBody(cacheResponse))
.networkResponse(stripBody(networkResponse))
.build()
if (cache != null) {
if (response.promisesBody() && CacheStrategy.isCacheable(response, networkRequest)) {
// Offer this request to the cache.
val cacheRequest = cache.put(response)
return cacheWritingResponse(cacheRequest, response).also {
if (cacheResponse != null) {
// This will log a conditional cache miss only.
listener.cacheMiss(call)
}
}
}
if (HttpMethod.invalidatesCache(networkRequest.method)) {
try {
cache.remove(networkRequest)
} catch (_: IOException) {
// The cache cannot be written.
}
}
}
return response
}2.4、ConnectInterceptor
ConnectInterceptor负责打开与目标服务器的连接，然后进入下一个拦截器（网络拦截器或者最后一个拦截器CallServerInterceptor）。
别看代码简短，它可是涉及了OkHttp网络连接池、连接事务管理等等，因为都通过Exchange及其内部的ExchangeCodec类完成。这些在OkHttp连接池中会分析到，这篇主要将OkHttp的连接池。
@Throws(IOException::class)
override fun intercept(chain: Interceptor.Chain): Response {
val realChain = chain as RealInterceptorChain
val exchange = realChain.call.initExchange(chain)
val connectedChain = realChain.copy(exchange = exchange)
return connectedChain.proceed(realChain.request)
}2.5、CallServerInterceptor
CallServerInterceptor是OkHttp拦截链中的最后一个，不会再继续调用proceed(Request)方法，最终完成对服务器响应数据的读取。
实现也是几个拦截器中最为复杂的，代码贴在下面， 反正我是看了很长时间，才大致搞明白，不求甚解！
override fun intercept(chain: Interceptor.Chain): Response {
val realChain = chain as RealInterceptorChain
val exchange = realChain.exchange!!
val request = realChain.request
val requestBody = request.body
val sentRequestMillis = System.currentTimeMillis()
// 写入请求头
exchange.writeRequestHeaders(request)
var invokeStartEvent = true
var responseBuilder: Response.Builder? = null
if (HttpMethod.permitsRequestBody(request.method) && requestBody != null) {
// 对 100-continue做特殊处理
if ("100-continue".equals(request.header("Expect"), ignoreCase = true)) {
exchange.flushRequest()
responseBuilder = exchange.readResponseHeaders(expectContinue = true)
exchange.responseHeadersStart()
invokeStartEvent = false
}
if (responseBuilder == null) {
// 写入请求体
if (requestBody.isDuplex()) {
// Prepare a duplex body so that the application can send a request body later.
exchange.flushRequest()
val bufferedRequestBody = exchange.createRequestBody(request, true).buffer()
requestBody.writeTo(bufferedRequestBody)
} else {
// Write the request body if the "Expect: 100-continue" expectation was met.
val bufferedRequestBody = exchange.createRequestBody(request, false).buffer()
requestBody.writeTo(bufferedRequestBody)
bufferedRequestBody.close()
}
} else {
exchange.noRequestBody()
if (!exchange.connection.isMultiplexed) {
// If the "Expect: 100-continue" expectation wasn't met, prevent the HTTP/1 connection
// from being reused. Otherwise we're still obligated to transmit the request body to
// leave the connection in a consistent state.
exchange.noNewExchangesOnConnection()
}
}
} else {
exchange.noRequestBody()
}
if (requestBody == null || !requestBody.isDuplex()) {
exchange.finishRequest()
}
if (responseBuilder == null) {
responseBuilder = exchange.readResponseHeaders(expectContinue = false)!!
if (invokeStartEvent) {
exchange.responseHeadersStart()
invokeStartEvent = false
}
}
var response = responseBuilder
.request(request)
.handshake(exchange.connection.handshake())
.sentRequestAtMillis(sentRequestMillis)
.receivedResponseAtMillis(System.currentTimeMillis())
.build()
var code = response.code
if (code == 100) {
// Server sent a 100-continue even though we did not request one. Try again to read the actual
// response status.
responseBuilder = exchange.readResponseHeaders(expectContinue = false)!!
if (invokeStartEvent) {
exchange.responseHeadersStart()
}
response = responseBuilder
.request(request)
.handshake(exchange.connection.handshake())
.sentRequestAtMillis(sentRequestMillis)
.receivedResponseAtMillis(System.currentTimeMillis())
.build()
code = response.code
}
exchange.responseHeadersEnd(response)
response = if (forWebSocket && code == 101) {
// Connection is upgrading, but we need to ensure interceptors see a non-null response body.
response.newBuilder()
.body(EMPTY_RESPONSE)
.build()
} else {
response.newBuilder()
.body(exchange.openResponseBody(response))
.build()
}
if ("close".equals(response.request.header("Connection"), ignoreCase = true) ||
"close".equals(response.header("Connection"), ignoreCase = true)) {
exchange.noNewExchangesOnConnection()
}
if ((code == 204 || code == 205) && response.body?.contentLength() ?: -1L > 0L) {
throw ProtocolException(
"HTTP $code had non-zero Content-Length: ${response.body?.contentLength()}")
}
return response
}3、自定义拦截器
OkHttp强大的地方还在于扩展性，预留了很多扩展给开发者。其中就包括添加自定义拦截器。
3.1、拦截器接口
OkHttp库定义了Interceptor接口及一个接口方法intercept(chain: Chain)，传入的参数正是1.2节中的RealInterceptorChain。
fun interface Interceptor {
@Throws(IOException::class)
fun intercept(chain: Chain): Response
}实现Interceptor接口，标准模板如下。参考OkHttp Interceptors。
class AppInterceptor : Interceptor {
override fun intercept(chain: Interceptor.Chain): Response {
//通过参数Chain获取Request,修改调整Request; 或增加其它逻辑比如Log等
val request: Request = chain.request()
//调用Chain的proceed(Request)方法 "递归"下去执行后面的拦截器
val response: Response = chain.proceed(request)
//其它逻辑; 处理返回的Response，并返回最终Response
return response
}
}
3.2、应用拦截器 interceptors
通过OkHttpClient.Builder构造OkHttpClient，调用addInterceptor()方法将自定义拦截器添加为应用拦截器interceptors。
val client: OkHttpClient = OkHttpClient.Builder() .addInterceptor(AppInterceptor()) .build()
对应OkHttp.Builder中的实现，将应用拦截器添加到interceptors集合中：
/**
* Returns a modifiable list of interceptors that observe the full span of each call: from
* before the connection is established (if any) until after the response source is selected
* (either the origin server, cache, or both).
*/
fun interceptors(): MutableList<Interceptor> = interceptors
fun addInterceptor(interceptor: Interceptor) = apply {
interceptors += interceptor
}3.3、网络拦截器 newworkInterceptors
同样的，OkHttpClient.Builder构造OkHttpClient时调用addNetworkInterceptor()方法将自定义拦截器添加到网络拦截器networkInterceptors。
val client: OkHttpClient = OkHttpClient.Builder() .addNetworkInterceptor(NetworkLoggingInterceptor()) ... .build()
对应OkHttp.Builder中的实现，将网络拦截器添加到networkInterceptors集合中：
/**
* Returns a modifiable list of interceptors that observe a single network request and response.
* These interceptors must call [Interceptor.Chain.proceed] exactly once: it is an error for a
* network interceptor to short-circuit or repeat a network request.
*/
fun networkInterceptors(): MutableList<Interceptor> = networkInterceptors
fun addNetworkInterceptor(interceptor: Interceptor) = apply {
networkInterceptors += interceptor
}
参考资料：
精彩的人生需要浪漫、无畏和勇气。
不忘初心的阿甘
仅供学习交流,切勿用于商业用途。如有错误欢迎指出：fluent0418@gmail.com
